Home DBI-SALA Rollgliss R550 Rescue and Descent Device (100m) | 3M 337325

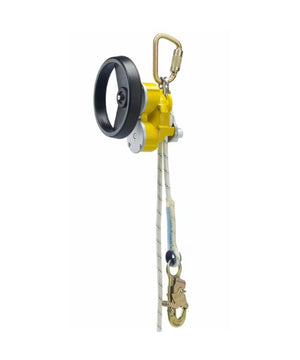

DBI-SALA Rollgliss R550 Rescue and Descent Device (100m) | 3M 337325



Key Features & Benefits

  • Integrated dual-brake controlled-descent system ensures safe, smooth lowering of one or two users without manual rope control.
  • Bi-directional lifeline hub allows descent from either side, enabling immediate reuse after a descent or rescue operation.
  • 3/8 in (9.5 mm) static kernmantle rope provides high tensile strength and durability under heavy loads.
  • Compact aluminium housing and lightweight design for portability and ease of deployment on towers, cranes, structures or confined work areas.

Supports evacuation, rescue lowering or assisted-lifting with rescue wheel or drill-adapter option — versatile for emergency retrieval or planned descent operations.

×
  • Automatic controlled descent: The R550 device uses an internal dual-brake system to automatically regulate descent speed, eliminating manual rope control and ensuring safe lowering.
  • Bi-directional lifeline hub: Rope can descend from either side, enabling immediate reuse after a rescue or descent — ideal for multi-stage evacuations or repeated rescues.
  • Durable static kernmantle rope: The 3/8 in (9.5 mm) rope is engineered for strength and longevity under heavy loads, offering dependable performance in demanding industrial conditions.
  • Compact, lightweight housing: Aluminium alloy housing reduces overall weight while delivering robustness, enabling easy transport and installation on towers, cranes, or confined-space access points.
  • Versatile rescue & evacuation mode: Supports both emergency evacuation and assisted-lift rescue (with optional rescue wheel or drill-adapter), making it suitable for varied height-access and rescue scenarios.

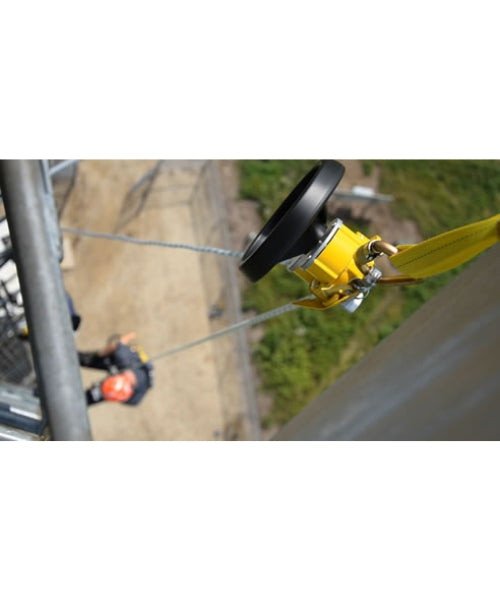

  • Telecommunications / Telecom Towers: Safe evacuation or rescue of maintenance personnel from towers, masts or elevated platforms.
  • Wind Energy / Wind Turbine Maintenance: Rapid descent or rescue from nacelles or turbine towers during maintenance or emergency scenarios.
  • Construction & Infrastructure: Emergency escape or controlled descent from scaffolding, tall structures, or elevated work sites.
  • Oil & Gas / Petrochemical: Rescue or evacuation from elevated rigs, platforms, or confined high-access zones.
  • Utilities & Power Transmission: Maintenance, inspection and emergency descent from poles, pylons, transmission towers, or elevated substations.
Packaging details as per manufacturer specifications.
Dimensions / Weight
For 100 m model: approx. 9.9 kg net weight
Materials
Aluminium housing; 3/8 in (9.5 mm) static kernmantle rope with braided polyester cover and nylon filament core; zinc-plated steel snap hooks / carabiners
Capacity / Load Ratings
1 person up to 310 lb (141 kg) or 2 persons up to 620 lb (282 kg), within specified descent height limits
Performance Metrics
Maximum descent height: one user up to 1,640 ft (500 m); two users up to approx. 575 ft (175 m), depending on rope length
Lifeline / Rope
3/8 in (9.5 mm) static kernmantle rope
Descent Speed
Nominal descent speed: 0.6–0.9 m/s (1 person); 0.6–1.2 m/s (2 persons), depending on load
Number of Users
One or two persons, subject to maximum allowable load per user
Descent Energy Rating
As per ANSI Z359.4 / CSA Z259.3-12 energy rating requirements, dependent on user load
Housing / Hooks
Aluminium housing; zinc-plated steel snap hooks / carabiners with ¾ in (19 mm) gate opening and approx. 3,600 lb (16 kN) gate strength
Component Model Numbers / Rope Lengths
Available in multiple rope lengths (e.g. 50 ft, 100 ft, 150 ft, 200 ft up to 500 ft / 152 m or custom). Example: 100 m version – type “100 m R550”
Colour / Size
Typical housing colour: yellow (per 3M standard); 9.5 mm static kernmantle rope; compact form factor for heavy-duty rescue applications
  • Product Data Sheet / Brochure
  • User Instructions / Installation & Use Manual (R550 User Instructions)
  • Inspection & Maintenance Guidelines as per 3M / DBI-SALA standard instructions

Why Buy from Kewalson?

Kewalson delivers certified, industry-grade safety products supported by reliable sourcing, technical expertise and more than five decades of operational experience.

Industry Credibility

50+ years serving India’s industrial safety ecosystem with consistent, standards-driven delivery.
Trusted by Maruti, Honda, Mahindra and Cargill for critical PPE procurement.
Proven reliability across automotive, engineering, pharma, food processing and infrastructure sectors.

Authorised Supply & Support

Official distribution partner for 3M, Ansell, Karam and global PPE manufacturers.
Verified, traceable supply chains with complete manufacturer documentation for audits and compliance.
PAN-India fulfilment supported by technical guidance on product selection and system compatibility.

Description

  • Automatic controlled descent: The R550 device uses an internal dual-brake system to automatically regulate descent speed, eliminating manual rope control and ensuring safe lowering.
  • Bi-directional lifeline hub: Rope can descend from either side, enabling immediate reuse after a rescue or descent — ideal for multi-stage evacuations or repeated rescues.
  • Durable static kernmantle rope: The 3/8 in (9.5 mm) rope is engineered for strength and longevity under heavy loads, offering dependable performance in demanding industrial conditions.
  • Compact, lightweight housing: Aluminium alloy housing reduces overall weight while delivering robustness, enabling easy transport and installation on towers, cranes, or confined-space access points.
  • Versatile rescue & evacuation mode: Supports both emergency evacuation and assisted-lift rescue (with optional rescue wheel or drill-adapter), making it suitable for varied height-access and rescue scenarios.

Applications & Industries

  • Telecommunications / Telecom Towers: Safe evacuation or rescue of maintenance personnel from towers, masts or elevated platforms.
  • Wind Energy / Wind Turbine Maintenance: Rapid descent or rescue from nacelles or turbine towers during maintenance or emergency scenarios.
  • Construction & Infrastructure: Emergency escape or controlled descent from scaffolding, tall structures, or elevated work sites.
  • Oil & Gas / Petrochemical: Rescue or evacuation from elevated rigs, platforms, or confined high-access zones.
  • Utilities & Power Transmission: Maintenance, inspection and emergency descent from poles, pylons, transmission towers, or elevated substations.

Standards and certifications

Applicable standards (as per manufacturer specifications):

🎖️ ANSI Z359.4
🎖️ OSHA 1910.66
🎖️ OSHA 1926.502
🎖️ CSA Z259.2.3-12
🎖️ EN 341 (for applicable models / markets)

Packaging

Packaging details as per manufacturer specifications.

Technical Specifications

Dimensions / Weight
For 100 m model: approx. 9.9 kg net weight
Materials
Aluminium housing; 3/8 in (9.5 mm) static kernmantle rope with braided polyester cover and nylon filament core; zinc-plated steel snap hooks / carabiners
Capacity / Load Ratings
1 person up to 310 lb (141 kg) or 2 persons up to 620 lb (282 kg), within specified descent height limits
Performance Metrics
Maximum descent height: one user up to 1,640 ft (500 m); two users up to approx. 575 ft (175 m), depending on rope length
Lifeline / Rope
3/8 in (9.5 mm) static kernmantle rope
Descent Speed
Nominal descent speed: 0.6–0.9 m/s (1 person); 0.6–1.2 m/s (2 persons), depending on load
Number of Users
One or two persons, subject to maximum allowable load per user
Descent Energy Rating
As per ANSI Z359.4 / CSA Z259.3-12 energy rating requirements, dependent on user load
Housing / Hooks
Aluminium housing; zinc-plated steel snap hooks / carabiners with ¾ in (19 mm) gate opening and approx. 3,600 lb (16 kN) gate strength
Component Model Numbers / Rope Lengths
Available in multiple rope lengths (e.g. 50 ft, 100 ft, 150 ft, 200 ft up to 500 ft / 152 m or custom). Example: 100 m version – type “100 m R550”
Colour / Size
Typical housing colour: yellow (per 3M standard); 9.5 mm static kernmantle rope; compact form factor for heavy-duty rescue applications

Documentation

  • Product Data Sheet / Brochure
  • User Instructions / Installation & Use Manual (R550 User Instructions)
  • Inspection & Maintenance Guidelines as per 3M / DBI-SALA standard instructions

Why Buy from Kewalson?

Kewalson delivers certified, industry-grade safety products supported by reliable sourcing, technical expertise and more than five decades of operational experience.

Industry Credibility

50+ years serving India’s industrial safety ecosystem with consistent, standards-driven delivery.
Trusted by Maruti, Honda, Mahindra and Cargill for critical PPE procurement.
Proven reliability across automotive, engineering, pharma, food processing and infrastructure sectors.

Authorised Supply & Support

Official distribution partner for 3M, Ansell, Karam and global PPE manufacturers.
Verified, traceable supply chains with complete manufacturer documentation for audits and compliance.
PAN-India fulfilment supported by technical guidance on product selection and system compatibility.

FAQs

What is the maximum descent height with the R550 100 m device? ⌄

The device supports descent (or rescue) up to 500 m (1,640 ft) for one user (max 310 lb / 141 kg), if rope length and configuration permit.

Can R550 support two persons at once? ⌄

Yes — up to two persons simultaneously, with combined weight not exceeding 620 lb (282 kg), subject to height/rope-length limitations.

What type of rope does the device use? ⌄

It uses a 3/8 in (9.5 mm) static kernmantle rope with braided polyester cover and nylon filament core, designed for durability and rescue loads.

Is user lifting (raising) possible or only descent? ⌄

Yes — the R550 can perform assisted-lift rescue if equipped with a rescue wheel or drill adapter, providing mechanical lifting capability.

What standards does this rescue device comply with? ⌄

The R550 is compliant with ANSI Z359.4, OSHA 1910.66, OSHA 1926.502, and CSA Z259.2.3-12 (depending on market/variant).

Is the system re-usable after a descent or rescue? ⌄

Yes — thanks to the bi-directional lifeline hub, rope can be rewound and device re-used, but cumulative descent energy and number of descents must be within manufacturer-specified limits.
